| Identification | Nominal weight 1m | Nominal dimensions | Cross-section | Dimensions for detailing
| Surface |
|
| b | h | s | t | r | A | h1 | d | Ø | pmin | pmax | AL | AG |
| kg/m | mm | cm2 | mm | mm |
| mm |
| m2/m | m2/m |
| HEB 100 | 20,4 | 100 | 100 | 6 | 10 | 12 | 26,0 | 80 | 56 | M10 | 56 | 58 | 0,567 | 27,76 |
| HEB 120 | 26,7 | 120 | 120 | 6,5 | 11 | 12 | 34,0 | 98 | 74 | M12 | 60 | 68 | 0,686 | 25,71 |
| HEB 140 | 33,7 | 140 | 140 | 7 | 12 | 12 | 43,0 | 116 | 92 | M16 | 66 | 76 | 0,805 | 23,88 |
| HEB 160 | 42,6 | 160 | 160 | 8 | 13 | 15 | 54,3 | 134 | 104 | M20 | 80 | 84 | 0,918 | 21,56 |
| HEB 180 | 51,2 | 180 | 180 | 8,5 | 14 | 15 | 65,3 | 152 | 122 | M24 | 88 | 92 | 1,037 | 20,25 |
| HEB 200 | 61,3 | 200 | 200 | 9 | 15 | 18 | 78,1 | 170 | 134 | M27 | 100 | 100 | 1,151 | 18,78 |
| HEB 220 | 71,5 | 220 | 220 | 9,5 | 16 | 18 | 91,0 | 188 | 152 | M27 | 100 | 118 | 1,270 | 17,77 |
| HEB 240 | 83,2 | 240 | 240 | 10 | 17 | 21 | 106,0 | 206 | 164 | M27 | 108 | 138 | 1,384 | 16,63 |
| HEB 260 | 93 | 260 | 260 | 10 | 17,5 | 24 | 118,4 | 225 | 177 | M27 | 114 | 158 | 1,499 | 16,12 |
| HEB 280 | 103 | 280 | 280 | 10,5 | 18 | 24 | 131,4 | 244 | 196 | M27 | 114 | 178 | 1,618 | 15,69 |
| HEB 300 | 117 | 300 | 300 | 11 | 19 | 27 | 149,1 | 262 | 208 | M27 | 120 | 198 | 1,732 | 14,80 |
| HEB 320 | 127 | 300 | 320 | 11,5 | 20,5 | 27 | 161,3 | 279 | 225 | M27 | 122 | 198 | 1,771 | 13,98 |
| HEB 340 | 134 | 300 | 340 | 12 | 21,5 | 27 | 170,9 | 297 | 243 | M27 | 122 | 198 | 1,810 | 13,49 |
| HEB 360 | 142 | 300 | 360 | 12,5 | 22,5 | 27 | 180,6 | 315 | 261 | M27 | 122 | 198 | 1,849 | 13,04 |
| HEB 400 | 155 | 300 | 400 | 13,5 | 24 | 27 | 197,8 | 352 | 298 | M27 | 124 | 198 | 1,927 | 12,41 |
| HEB 450 | 171 | 300 | 450 | 14 | 26 | 27 | 218,0 | 398 | 344 | M27 | 124 | 198 | 2,026 | 11,84 |
| HEB 500 | 187 | 300 | 500 | 14,5 | 28 | 27 | 238,6 | 444 | 390 | M27 | 124 | 198 | 2,125 | 11,34 |
| HEB 550 | 199 | 300 | 550 | 15 | 29 | 27 | 254,1 | 492 | 438 | M27 | 124 | 198 | 2,224 | 11,15 |
| HEB 600 | 212 | 300 | 600 | 15,5 | 30 | 27 | 270,0 | 540 | 486 | M27 | 126 | 198 | 2,323 | 10,96 |
| HEB 650 | 225 | 300 | 650 | 16 | 31 | 27 | 286,3 | 588 | 534 | M27 | 126 | 198 | 2,422 | 10,77 |
| HEB 700 | 241 | 300 | 700 | 17 | 32 | 27 | 306,4 | 636 | 582 | M27 | 126 | 198 | 2,520 | 10,48 |
| HEB 800 | 262 | 300 | 800 | 17,5 | 33 | 30 | 334,2 | 734 | 674 | M27 | 134 | 198 | 2,713 | 10,34 |
| HEB 900 | 291 | 300 | 900 | 18,5 | 35 | 30 | 371,3 | 830 | 770 | M27 | 134 | 198 | 2,911 | 9,99 |
| HEB 1000 | 314 | 300 | 1000 | 19 | 36 | 30 | 400,0 | 928 | 868 | M27 | 134 | 198 | 3,110 | 9,905 |
| Identification | Section properties, static data |
| strong axis x-x
|
| weak axis y-y
|
|
| Ix | Wel.x | Wpl.x | ix | Avy | Sx | Iy | Wel.y | Wpl.y | iy | Ss | It | Iw |
| cm4 | cm3 | cm3 | cm | cm2 | cm3 | cm4 | cm3 | cm3 | cm | mm | cm4 | cm |
| HEB 100 | 449,5 | 89,91 | 104,2 | 4,16 | 9,04 | 52,1 | 167,3 | 33,45 | 51,42 | 2,53 | 40,06 | 9,25 | 3,38 |
| HEB 120 | 864,4 | 144,1 | 165,2 | 5,04 | 10,96 | 82,6 | 317,5 | 52,92 | 80,97 | 3,06 | 42,56 | 13,84 | 9,41 |
| HEB 140 | 1509 | 215,6 | 245,4 | 5,93 | 13,08 | 123 | 549,7 | 78,52 | 119,8 | 3,58 | 45,06 | 20,06 | 22,48 |
| HEB 160 | 2492 | 311,5 | 354,0 | 6,78 | 17,59 | 177 | 889,2 | 111,2 | 170,0 | 4,05 | 51,57 | 31,24 | 47,94 |
| HEB 180 | 3831 | 425,7 | 481,4 | 7,66 | 20,24 | 241 | 1363 | 151,4 | 231,0 | 4,57 | 54,07 | 42,16 | 93,75 |
| HEB 200 | 5696 | 569,6 | 642,5 | 8,54 | 24,83 | 321 | 2003 | 200,3 | 304,8 | 5,07 | 60,09 | 59,28 | 171,1 |
| HEB 220 | 8091 | 735,5 | 827,0 | 9,43 | 27,92 | 414 | 2843 | 258,5 | 393,9 | 5,59 | 62,59 | 76,57 | 295,4 |
| HEB 240 | 11260 | 938,3 | 1053 | 10,31 | 33,23 | 527 | 3923 | 326,9 | 498,4 | 6,08 | 68,60 | 102,7 | 486,9 |
| HEB 260 | 14920 | 1148 | 1283 | 11,22 | 37,59 | 641 | 5135 | 395,0 | 602,2 | 6,58 | 73,12 | 123,8 | 753,7 |
| HEB 280 | 19270 | 1376 | 1534 | 12,11 | 41,09 | 767 | 6595 | 471,0 | 717,6 | 7,09 | 74,62 | 143,7 | 1130 |
| HEB 300 | 25170 | 1678 | 1869 | 12,99 | 47,43 | 934 | 8563 | 570,9 | 870,1 | 7,58 | 80,63 | 185,0 | 1688 |
| HEB 320 | 30820 | 1926 | 2149 | 13,82 | 51,77 | 1070 | 9239 | 615,9 | 939,1 | 7,57 | 84,13 | 225,1 | 2069 |
| HEB 340 | 36660 | 2156 | 2408 | 14,65 | 56,09 | 1200 | 9690 | 646,0 | 985,7 | 7,53 | 86,63 | 257,2 | 2454 |
| HEB 360 | 43190 | 2400 | 2683 | 15,46 | 60,60 | 1340 | 10140 | 676,1 | 1032 | 7,49 | 89,13 | 292,5 | 2883 |
| HEB 400 | 57680 | 2884 | 3232 | 17,08 | 69,98 | 1620 | 10820 | 721,3 | 1104 | 7,40 | 93,13 | 355,7 | 3817 |
| HEB 450 | 79890 | 3551 | 3982 | 19,14 | 79,66 | 1990 | 11720 | 781,4 | 1198 | 7,33 | 97,63 | 440,5 | 5258 |
| HEB 500 | 107200 | 4287 | 4815 | 21,19 | 89,82 | 2410 | 12620 | 841,6 | 1292 | 7,27 | 102,1 | 538,4 | 7018 |
| HEB 550 | 136700 | 4971 | 5591 | 23,20 | 100,1 | 2800 | 13080 | 871,8 | 1341 | 7,17 | 104,6 | 600,3 | 8856 |
| HEB 600 | 171000 | 5701 | 6425 | 25,17 | 110,8 | 3210 | 13530 | 902,0 | 1391 | 7,08 | 107,1 | 667,2 | 10970 |
| HEB 650 | 210600 | 6480 | 7320 | 27,12 | 122,0 | 3660 | 13980 | 932,3 | 1441 | 6,99 | 109,6 | 739,2 | 13360 |
| HEB 700 | 256900 | 7340 | 8327 | 28,96 | 137,1 | 4160 | 14440 | 962,7 | 1495 | 6,87 | 112,6 | 830,9 | 16060 |
| HEB 800 | 359100 | 8977 | 10230 | 32,78 | 161,8 | 5110 | 14900 | 993,6 | 1553 | 6,68 | 118,6 | 946,0 | 21840 |
| HEB 900 | 494100 | 10980 | 12580 | 36,48 | 188,8 | 6290 | 15820 | 1050 | 1658 | 6,53 | 123,6 | 1137 | 29460 |
| HEB 1000 | 644700 | 12890 | 14860 | 40,15 | 212,5 | 7430 | 16280 | 1085 | 1716 | 6,38 | 126,1 | 1254 | 37640 |

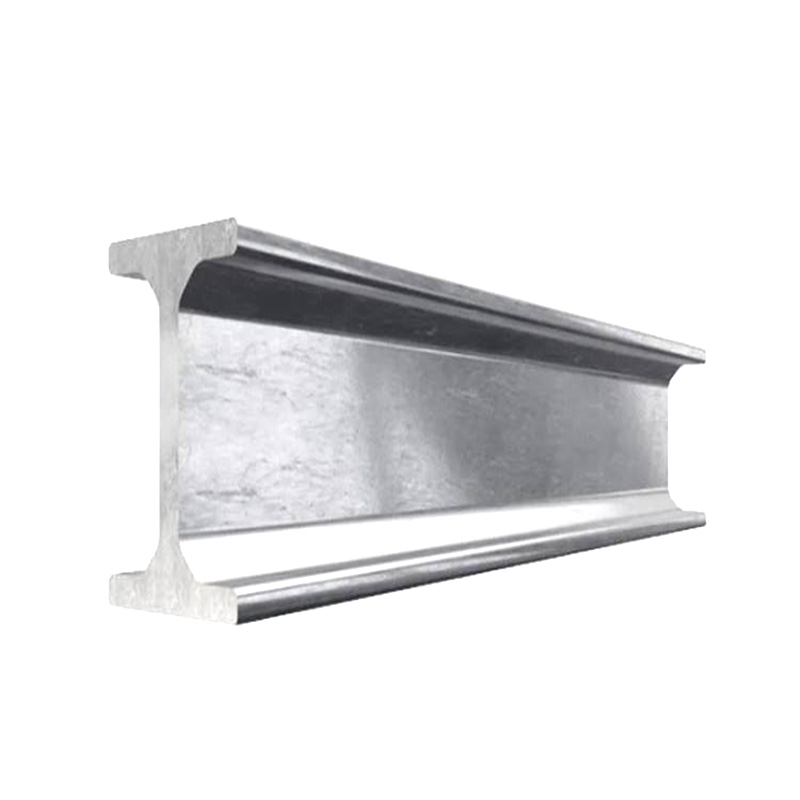

Products Real Shot
Our Factory And Ample Stock
Our Certificates
Our Advantages
1. Advanced production equipment, support various size customization.
2. Any MOQ.
3. High Quality and Professional Services.
4. Support any third party detection.
5. We have certificates ISO9001 & SGS&BV.
Packing and Shipping
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are charged, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Tianjin, Qingdao ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
